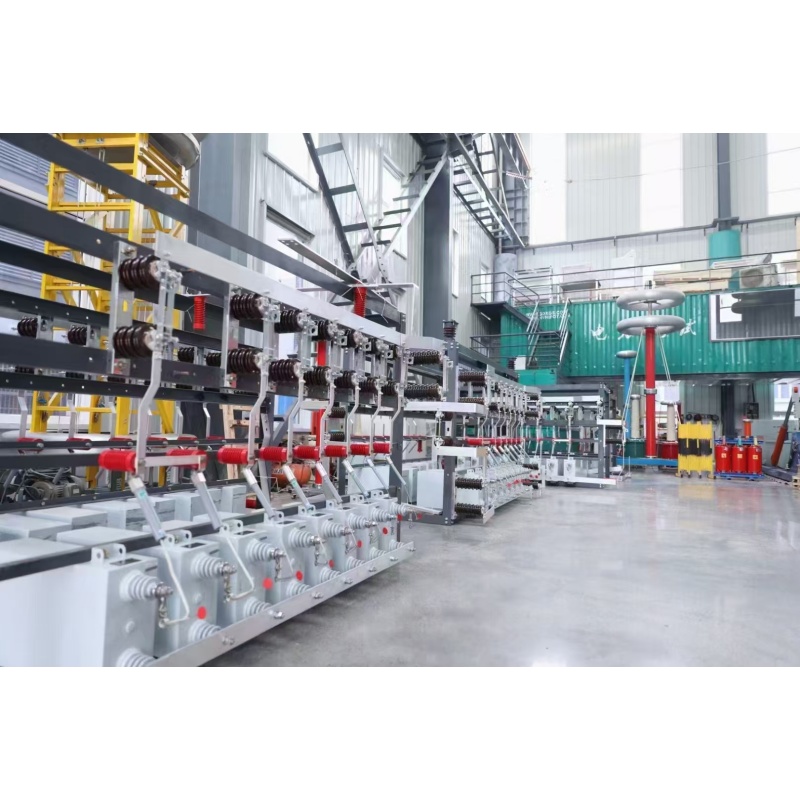

The capacitor bank features a modular structure, stable electrical performance, and reliable insulation design, making it suitable for continuous operation in indoor or outdoor installations. It can be configured according to different voltage levels and compensation requirements, providing a flexible and efficient solution for power quality improvement.
Item | Detailed Specifications |
Rated Compensation Capacity | Multiple specifications available: 85500kVar, rated voltage 10kV,six floors switchable between three-phaseY/Δconnections, singlecapacitorratedvoltage66kV(single-phase),eachphasewith 2 series-parallel combinations, single-stage rated capacity maximumupto85500kVar |
RatedVoltage | 10kV,compatiblewith50Hz/60Hzpowerfrequency |
WiringMode | Three-phase/single-phaseoptional |
Switching Control | Electric switching via vacuum contactors, supporting automatic adjustment (intelligently switching capacity based on load reactive power demand) |
Grounding Configuration | Equipped with an electric grounding switch |
Insulation & Protection | Adopts high-quality insulating materials; protection class IP20 (for indoor use); operating temperature range -25℃~+40℃, humidity ≤85%RH |
Measurement & Control | Integrates an intelligent measurement and control unit, supporting real-time monitoring of voltage, current, power factor, etc., with overvoltage, overcurrent, and overheating protection |
The capacitor bank features a modular structure, stable electrical performance, and reliable insulation design, making it suitable for continuous operation in indoor or outdoor installations. It can be configured according to different voltage levels and compensation requirements, providing a flexible and efficient solution for power quality improvement.
Item | Detailed Specifications |
Rated Compensation Capacity | Multiple specifications available: 85500kVar, rated voltage 10kV,six floors switchable between three-phaseY/Δconnections, singlecapacitorratedvoltage66kV(single-phase),eachphasewith 2 series-parallel combinations, single-stage rated capacity maximumupto85500kVar |
RatedVoltage | 10kV,compatiblewith50Hz/60Hzpowerfrequency |
WiringMode | Three-phase/single-phaseoptional |
Switching Control | Electric switching via vacuum contactors, supporting automatic adjustment (intelligently switching capacity based on load reactive power demand) |
Grounding Configuration | Equipped with an electric grounding switch |
Insulation & Protection | Adopts high-quality insulating materials; protection class IP20 (for indoor use); operating temperature range -25℃~+40℃, humidity ≤85%RH |
Measurement & Control | Integrates an intelligent measurement and control unit, supporting real-time monitoring of voltage, current, power factor, etc., with overvoltage, overcurrent, and overheating protection |
