The equipment consists of a front switchgear, a YDQW - 300/300 power frequency test transformer (installed in a container tank), a TYDZ - 100/0.38/0~1.1 column - type voltage regulator, an LBQ - 100/1 filter, a GK - 300/1 compensation reactor, a damping device, a TAWF - 500/300 capacitive voltage divider (installed in a container tank), and a PLC control device.

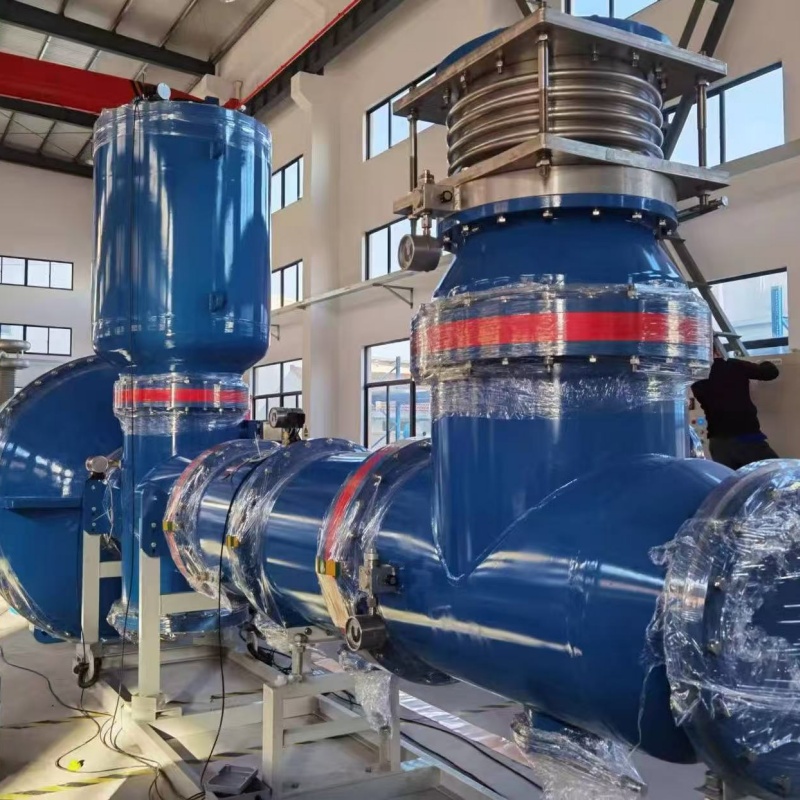

Gas-Insulated Power Frequency Transformer | |
Rated Capacity | 300kVA |
Rated Output Voltage | 300kV |
Rated Output Current | 1A |
Rated Input Voltage | 0.38KV |
Short-circuit impedance | < 8% |
Partial discharge | ≤2pc at 100% rated voltage, ≤1.5pc at 80% rated voltage. |
Running Time | 30 min on / 30 min off at 100% rating; continuous at 2/3 rating. |
Waveform distortion | ≤3% (input voltage distortion <3%). |
