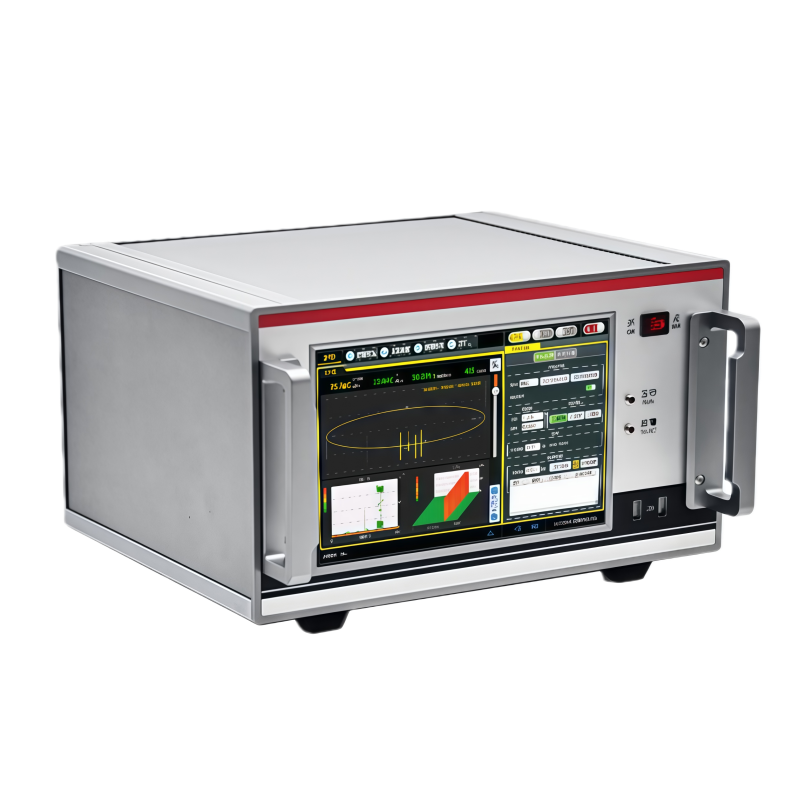

The Digital Partial Discharge Tester is used to detect partial discharge in high-voltage equipment such as transformers, breakers, GIS, surge arresters, and cables, and can also perform type tests and insulation monitoring.
Capacitance range | 6pF-250μF |
Sensitivity | 0.1pc |
Measurement channel | 2pcs independent channels |
Sampling Accuracy | 12Bit |
Sampling rate | Max. 100MHz per channel |
Measurement range | 0.1pc~100000pc |
Dynamic range | >80db |
Measurement frequency band | 10KHz~1MHz at 3db |
Frequency range of test power | 50-400Hz |
Programmable filter | Low frequency 10K, 20K, 40K, 80K; High frequency 100K, 200K, 300K, 1000K |
Environmental temperature | -15℃~50℃ |
The Digital Partial Discharge Tester is used to detect partial discharge in high-voltage equipment such as transformers, breakers, GIS, surge arresters, and cables, and can also perform type tests and insulation monitoring.
Capacitance range | 6pF-250μF |
Sensitivity | 0.1pc |
Measurement channel | 2pcs independent channels |
Sampling Accuracy | 12Bit |
Sampling rate | Max. 100MHz per channel |
Measurement range | 0.1pc~100000pc |
Dynamic range | >80db |
Measurement frequency band | 10KHz~1MHz at 3db |
Frequency range of test power | 50-400Hz |
Programmable filter | Low frequency 10K, 20K, 40K, 80K; High frequency 100K, 200K, 300K, 1000K |
Environmental temperature | -15℃~50℃ |
