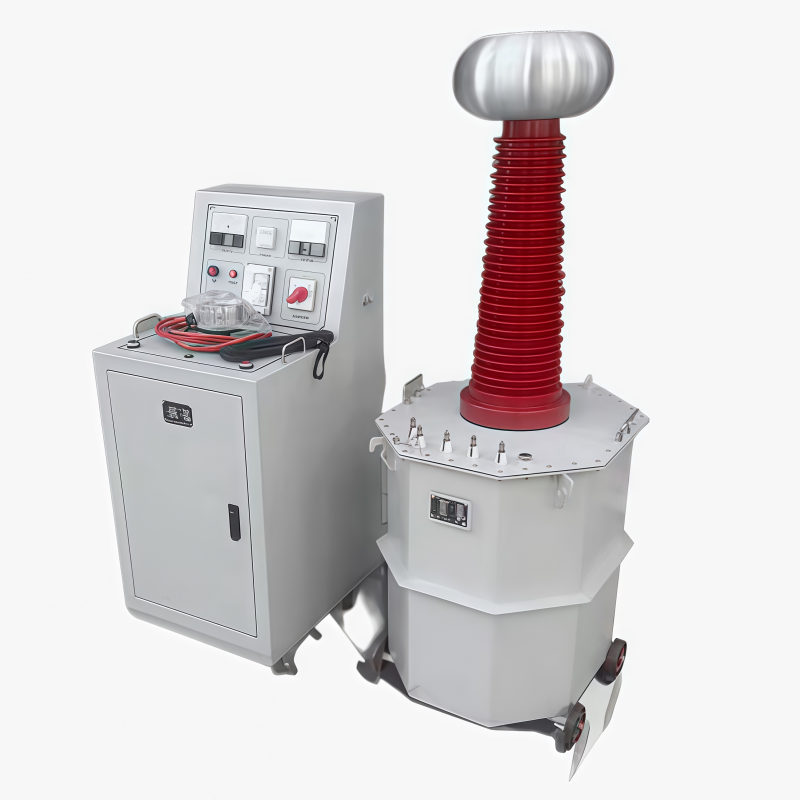

IRON - Immersed-Insulated Transformer

The Oil-Immersed Power Frequency Transformer is Suitable for AC withstand testing of 110 kV cables, transformers, GIS, and generators. It provides high output capacity and voltage, and its detuning protection ensures the voltage drops rapidly during breakdown, preventing damage to the system.
Availability:
Quantity:
Inquire Add to Basket

The Oil-Immersed Power Frequency Transformer is Suitable for AC withstand testing of 110 kV cables, transformers, GIS, and generators. It provides high output capacity and voltage, and its detuning protection ensures the voltage drops rapidly during breakdown, preventing damage to the system.


Oil-Immersed Power Frequency Transformer
Rated Output Voltage
260KV
Rated Output Capacity
1300KVA
Rated Current
5A
Single Reactor
650KVA/130KV
Output Waveform
Sine wave
Measurement Accuracy
Effective value 1.5 class
Full load working time
Allow continuous work 60min
Power Supply
Recommended: 380V ±10%, 50/60Hz (customizable)
Work Frequency
30Hz – 300Hz


Previous:
Next:
Oil Immersed Test Transformer Power Frequency Test Transformer AC Hipot Test Transformer High Voltage Test Transformer AC Withstand Voltage Transformer Insulation Withstand Test Transformer Detuning Protection Test Transformer Sinusoidal Output Test Transformer Indoor High Voltage Transformer Factory Onsite Test Transformer

Related Products

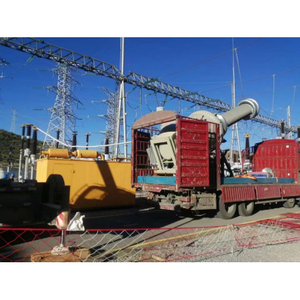

IRON - Gas-Insulated Transformer
IRON - Gas-Insulated Transformer

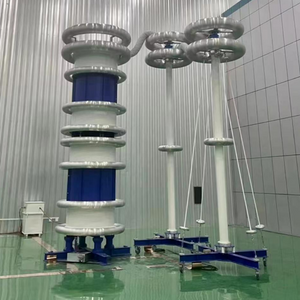

EPOXY - AC Resonant Reactor
