Dtts - Distribution Test Transformer

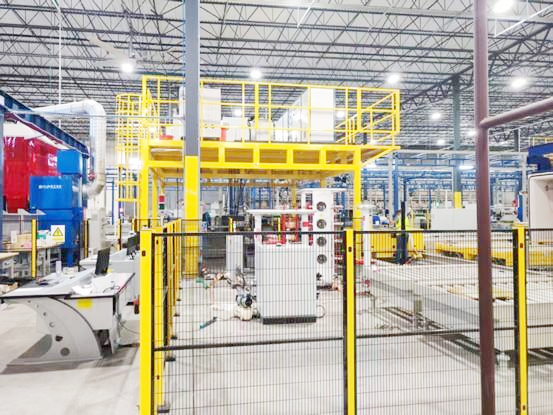

The DTTS is a complete turn-key solution for testing three-phase transformers up to 20kV/5MVA. It performs all standard tests in compliance with ANSI/TEEE and IEC standards.
The system features PLC-based control for flexible configuration and automated data acquisition. This integrated system covers all delivery tests, type tests, and special tests for transformers, providing a reliable and cost-effective testing solution.

Availability:

Quantity:



Inquire Add to Basket

Product Description

PARAMETERS

Routine Test:
Measurement of D.C. winding resistance.
Measurement of voltage ratio.
Check of voltage vector relationship.
Measurement of No-load loss ¤t harmonics analysis of No-load current.
Measurement of load loss &short-circuit impedance.
Calculation of total loss,impedance,regulation &efficiency.
Tap changer operation.
Measurement of insulation resistance.
AC voltage withstand test.
Induced AC voltage test with partial discharge.
Measurement of dissipation power factor (tan o) and capacitance.
Bushing current transformer test (BCT).
Type Tests:	Special Tests:
Temperature rise test.	Sweep frequency response analysis.
Lightening &switching impulse test.	Partial discharge tests.
Sound Level test.	Dissolved Gas Analysis (DGA).
