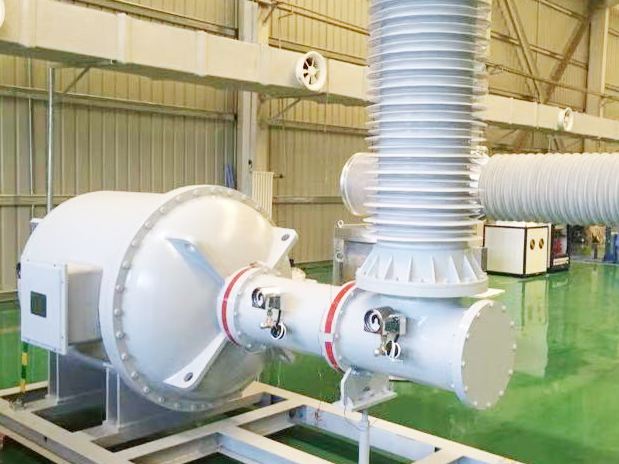

Gas - Insulated Power Frequency Transformer

The Gas-Insulated Power Frequency Transformer uses SF6 gas as the insulation medium. It provides excellent dielectric strength, ensuring safe operation in space- constrained areas. It integrates the functions of potential transformers and test transformers.
The equipment consists of a front switchgear, a YDQW300/300 power frequency test transformer (installed in a container tank), a TYDZ -100/0.38/0~1.1 column-type voltage regulator, an LBQ-100/1 filter, a GK-300/1 compensation reactor, a damping device, a TAWF- 500/300 capacitive voltage divider (installed in a container tank), and a PLC control device.
