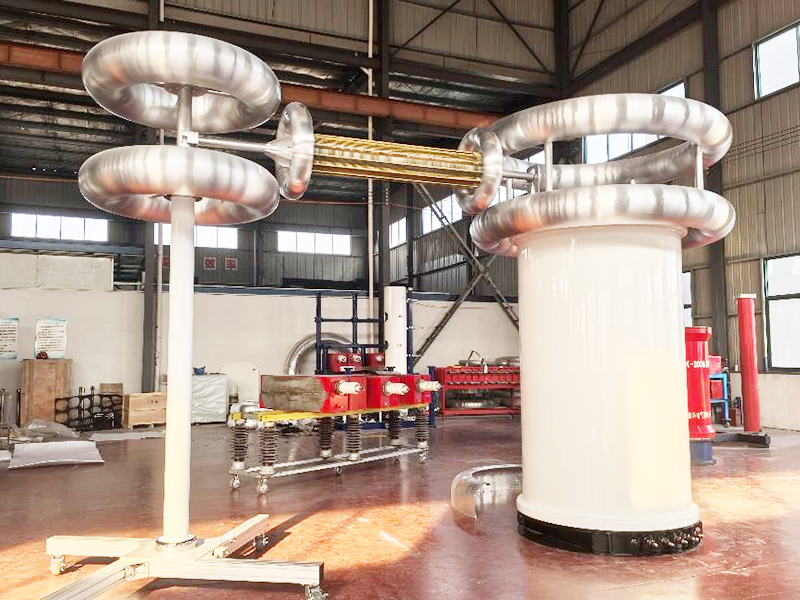

Oil - Immersed Power Frequency

The Oil-Immersed Power Frequency Transformer is Suitable for AC withstand testing of 110 kV cables, transformers, GIS, and generators. It provides high output capacity and voltage, and its detuning protection ensures the voltage drops rapidly during breakdown, preventing damage to the system.
Availability:
Quantity:
Inquire Add to Basket

PARAMETERS

Oil-Immersed Power Frequency Transformer

Rated Output Voltage

260KV

Rated Output Capacity

1300KVA

Rated Current

5A

Single Reactor

650KVA/130KV

Output Waveform

Sine wave

Measurement Accuracy

Effective value 1.5 class

Full load working time

Allow continuous work 60min

Power Supply

Recommended:380V ±10%,50/60Hz (customizable)

Work Frequency

30Hz — 300Hz
