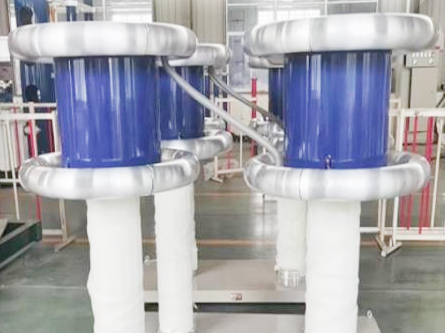

HV Filter

The High-Voltage Filter is designed to ensure clean, stable test conditions by effectively suppressing high-frequency interference in high-voltage measurement and partial discharge testing. It features reliable insulation performance, low partial discharge, and a durable structure suitable for long-term operation in laboratory and field environments.
Availability:
Quantity:
Inquire Add to Basket

PARAMETERS

Filter

Rated Voltage

Single-phase 20kV / 100kV

Rated Current

30A

Operating Frequency

50~200Hz

Attenuation Characteristics

10kHz ~ 400kHz ≥40dB

Partial Discharge Level

≤10pC at rated voltage

Cooling Method

Inductor section is dry-type self-cooled,filter capacitor is oil-immersed self-cooled

Operating Mode

Continuous operation for 3 hours at rated current
