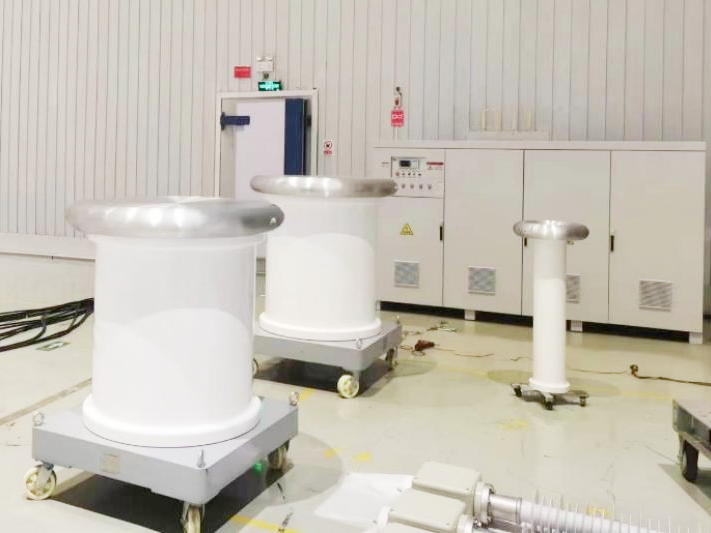

Harmonic Source

Power Supply Unit

Model

GPXB-120K

Capacity

120 kW

Input

380 V,single-phase

Output Voltage

0-310 V

Output Frequency

20-3000 Hz

Waveform Distortion

≤3%

Waveform Type

Pure sine wave

Step-Up Transformer (Low-Frequency Section)

Model

DPXB-120-120

Step-Up Transformer (High-Frequency Section)

Model

GPXB-120-60

Capacity

120 kVA

Capacity

120 kVA

Output Voltage

0-120 kV

Output Voltage

0-60 kV

Frequency

50-300 Hz

Frequency

300-3000 Hz

Standard Capacitive Divider

Rated Voltage

120 kV

Frequency Range

50-3000 Hz

Accuracy

0.5 Class

Partial Discharge

<10 pC
