Impulse Voltage Test System

This system provides a complete high-voltage impulse test solution for assessing insulation strength and faults in equipment like transformers. It integrates impulse generation and measurement, featuring a 12-bit, 100 MS/s internal A/D card. User-friendly software enables powerful waveform analysis and report generation, with automatic evaluation compliant with key IEC standards. The system is controlled via a host computer using USB or Ethernet for seamless integration into test setups.

Availability:

Quantity:



Inquire Add to Basket

Product Description

PARAMETERS

Produce Name	Model No.	Description

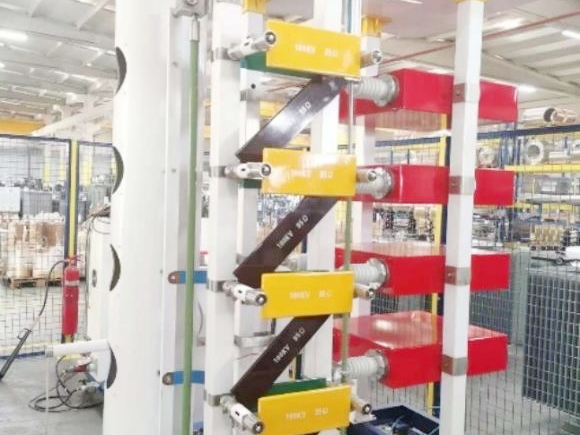

Impulse Voltage Generator	QDYS-300/30	300kV,30kJ,S structure,LI according to IEC60060
DC Charging Device	ZD-120/0.22	5kVA,Input voltage:0.22kV (AC),Output voltage:120kV (DC)
Weak Damped Capacitive Impulse Voltage Divider	DF-300/300	300kV,300pF,Divider ratio:300:1,Accuracy:0.5%,Partial response time:<95nS
Automatic Multiple Chopping Gap	LQSF300	300kV,2 Sphere,LIC,Chopping time:2-6us
Automatic Impulse Control System	IMS-2001	MISUBISH PLC,SIEMENS components
Digital Impulse Voltage Measuring System	LQ3004-12/100	12Bit,100Ms/s,2 channel,Advance analyzers software by LABVIEW
